Using gdotv on Azure Marketplace

Note: this page is available currently for review purposes only. Our Azure Marketplace offering is not yet available to the public

gdotv is available as a Kubernetes application on the Azure Marketplace. It is a graph database client, perfect for developers looking to start on a graph project or support an existing one. It is compatible with Amazon Neptune, Neo4j, Memgraph, FalkorDB, JanusGraph, Gremlin Server, Dgraph and many more graph databases.

We provide state of the art development tools with advanced autocomplete, syntax checking and graph visualization.

With gdotv you can:

• View your graph database's schema in 1 click
• Write and run Gremlin, Cypher, SPARQL, GQL and DQL queries against your database
• Visualize query results across a variety of formats such as graph visualization, JSON and tables
• Explore your data interactively with our no-code graph database browser
• Debug Gremlin queries step by step, and access profiling tools for Gremlin and Cypher

It is deployed on an AKS cluster via a CNAB bundle (Porter), running five containerized services behind a LoadBalancer with TLS enabled by default.

Deploying a gdotv instance

To deploy gdotv from the Azure Marketplace, follow these steps:

1. Navigate to the gdotv Azure Marketplace listing
2. Click Get It Now, then click Create or Configure

3. Select or create an Azure subscription and resource group for the deployment

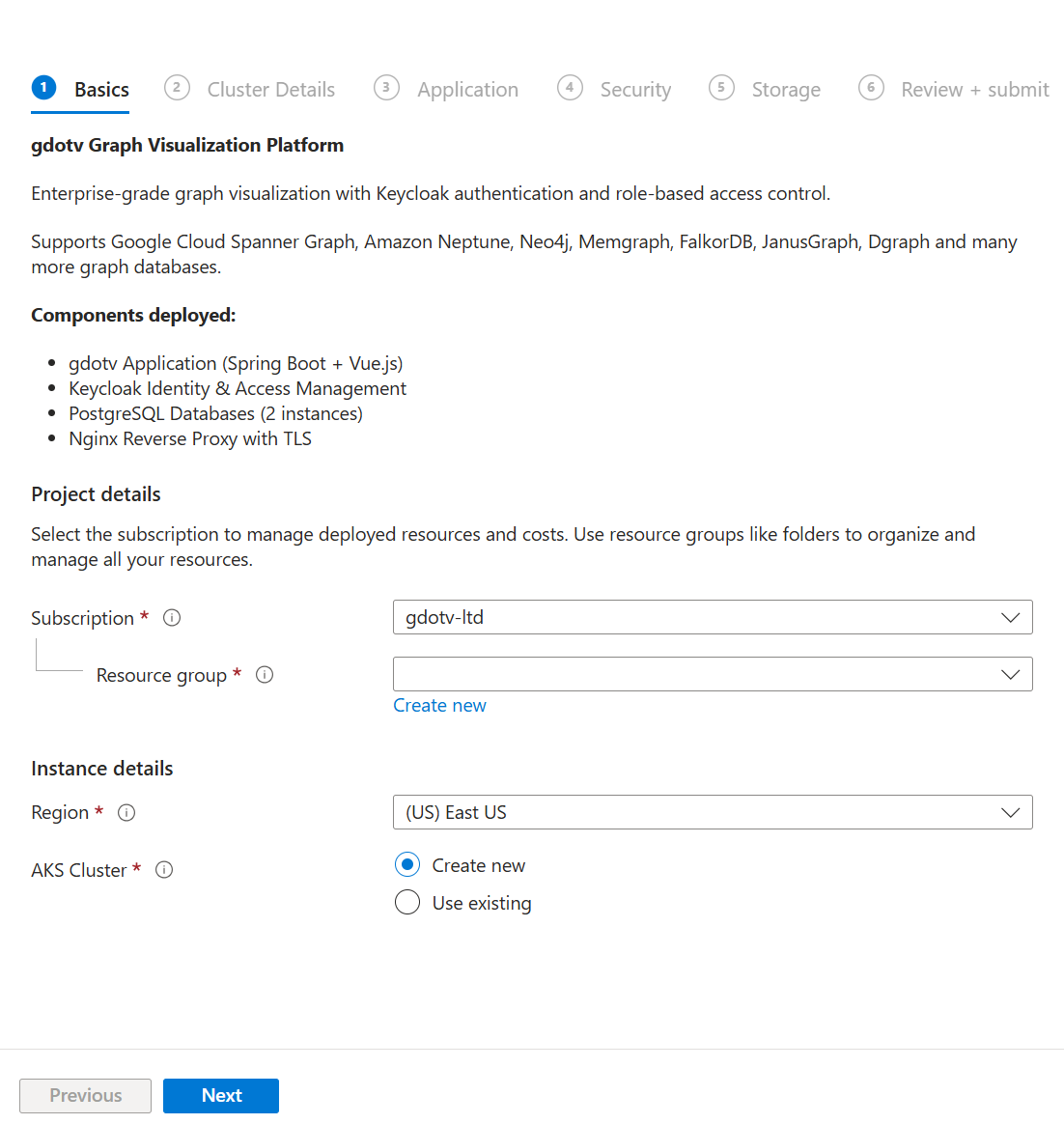

4. Configure the deployment parameters across the wizard steps:

   Cluster Details

   • Create New Cluster: Check to provision a new AKS cluster, or leave unchecked to deploy into an existing one
   • Cluster Name: Name of an existing AKS cluster, or a name for a new one
   • Kubernetes Version: Kubernetes version for the new cluster (e.g. 1.32, 1.31, 1.30)
   • Node VM Size: Azure VM size for cluster nodes (e.g. Standard_D4s_v3)
   • Enable Auto-Scaling: Toggle automatic node scaling
   • Node Count: Number of nodes (default: 3, range: 1–10)

   Application Details

   • Extension Name: Name for the Kubernetes extension (default: gdotv-developer)
   • Hostname (optional): A custom domain name for your gdotv instance. Leave empty to auto-detect the LoadBalancer IP address
   • gdotv Replica Count: Number of gdotv application replicas (default: 2, range: 1–10)

   Security

   • Keycloak Admin Password (optional): Leave empty to auto-generate
   • gdotv Database Password (optional): Leave empty to auto-generate
   • Keycloak Database Password (optional): Leave empty to auto-generate

   Storage

   • Storage Class: Standard SSD (managed-csi) or Premium SSD (managed-csi-premium)
   • gdotv Database Size: Persistent volume size for the gdotv database (default: 20Gi)
   • Keycloak Database Size: Persistent volume size for the Keycloak database (default: 10Gi)

5. Click Review + Create, then Create

The deployment process is fully automatic. If no hostname is provided, gdotv will:

1. Deploy all infrastructure components (nginx, Keycloak, PostgreSQL databases)
2. Wait for the LoadBalancer to be assigned an external IP
3. Configure the application with the detected IP and generate a self-signed TLS certificate
4. Start the gdotv application

This process typically takes 5–15 minutes depending on whether a new AKS cluster is being created.

Pricing

gdotv on Azure Marketplace is usage-based. Charges are billed through your Azure account. For pricing details, refer to the Marketplace listing page.

Architecture

gdotv is deployed as a set of Kubernetes workloads on AKS via a CNAB bundle. The deployment includes five containers managed by Helm:

• gdotv-developer: The gdotv web application (Spring Boot + Vue.js)
• gdotv-keycloak: A Keycloak instance providing user authentication, federation and SSO capabilities
• gdotv-postgres: A PostgreSQL database storing gdotv application data
• gdotv-keycloak-postgres: A PostgreSQL database storing Keycloak configuration and realm data
• gdotv-nginx: An NGINX reverse proxy fronting the application over port 443, with TLS enabled by default

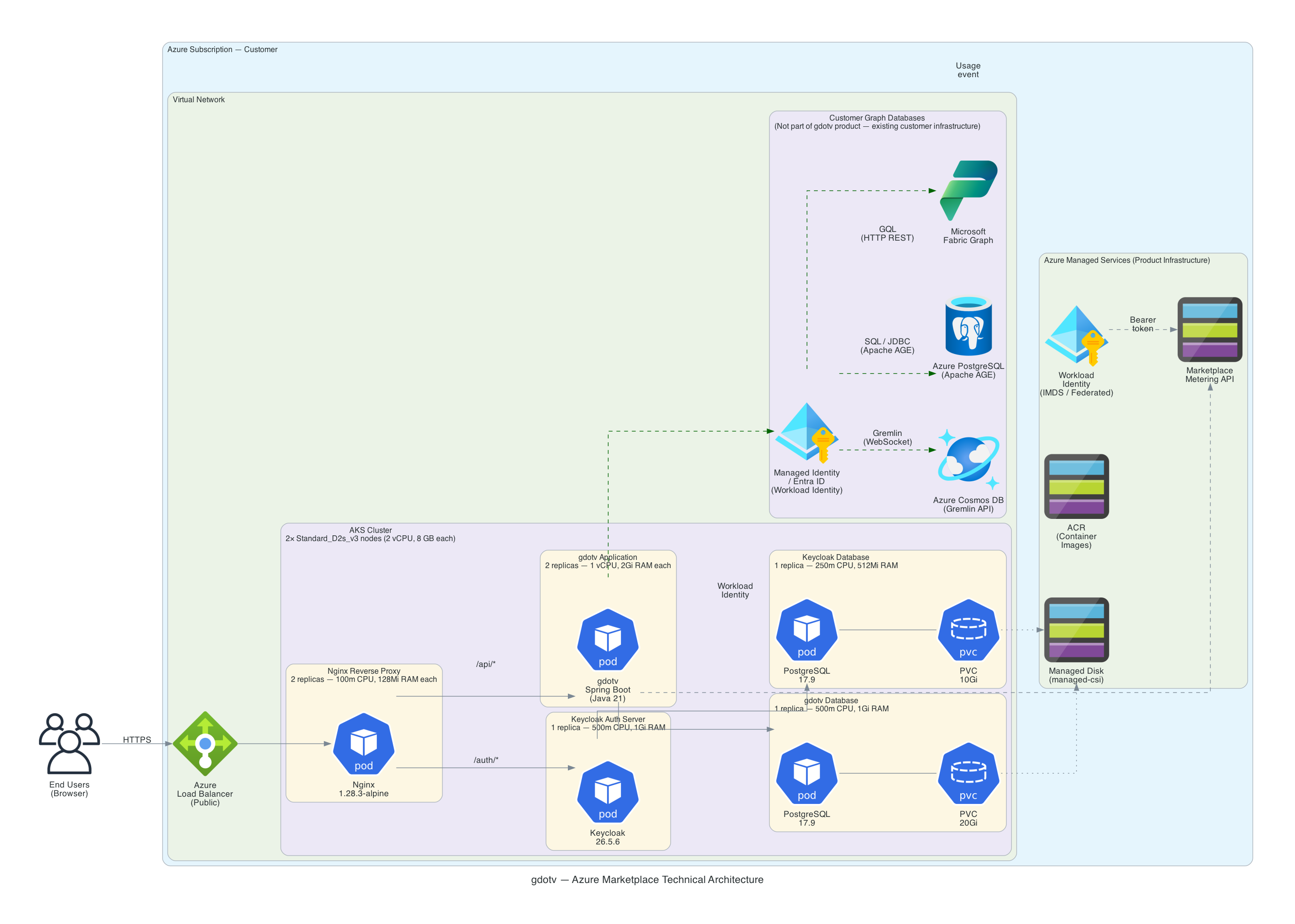

The architecture of the application is as shown below:

Sizing

The AKS node pool should be provisioned with sufficient resources to run all five containers. The following table provides sizing guidance:

Node VM Size	Concurrent Users	Notes
Standard_D2s_v3	Up to 3 users	Minimum viable for evaluation
Standard_D4s_v3	Up to 10 users	Recommended for most teams
Standard_D8s_v3	Up to 20 users	For larger teams
Standard_D16s_v3	Over 20 users	For enterprise deployments

For production use, we recommend at least 3 nodes with auto-scaling enabled for high availability.

Connecting to your AKS cluster

To run kubectl or helm commands against your gdotv deployment, you need to authenticate to the AKS cluster first.

Prerequisites

Install the following CLI tools if you haven't already:

• Azure CLI (az)
• kubectl
• helm (for Helm operations)

Authenticate with Azure CLI

Log in to your Azure account:

az login

Set your subscription:

az account set --subscription <SUBSCRIPTION_ID>

Fetch cluster credentials

This configures kubectl to connect to your AKS cluster:

az aks get-credentials \
  --resource-group <RESOURCE_GROUP> \
  --name <CLUSTER_NAME>

For example:

az aks get-credentials \
  --resource-group gdotv-rg \
  --name gdotv-aks

Verify connectivity

kubectl get pods -n gdotv

You should see the gdotv pods listed with their status.

Accessing gdotv

Once the deployment is complete, find the external IP assigned to the LoadBalancer service:

kubectl get svc -n gdotv -l app.kubernetes.io/component=nginx

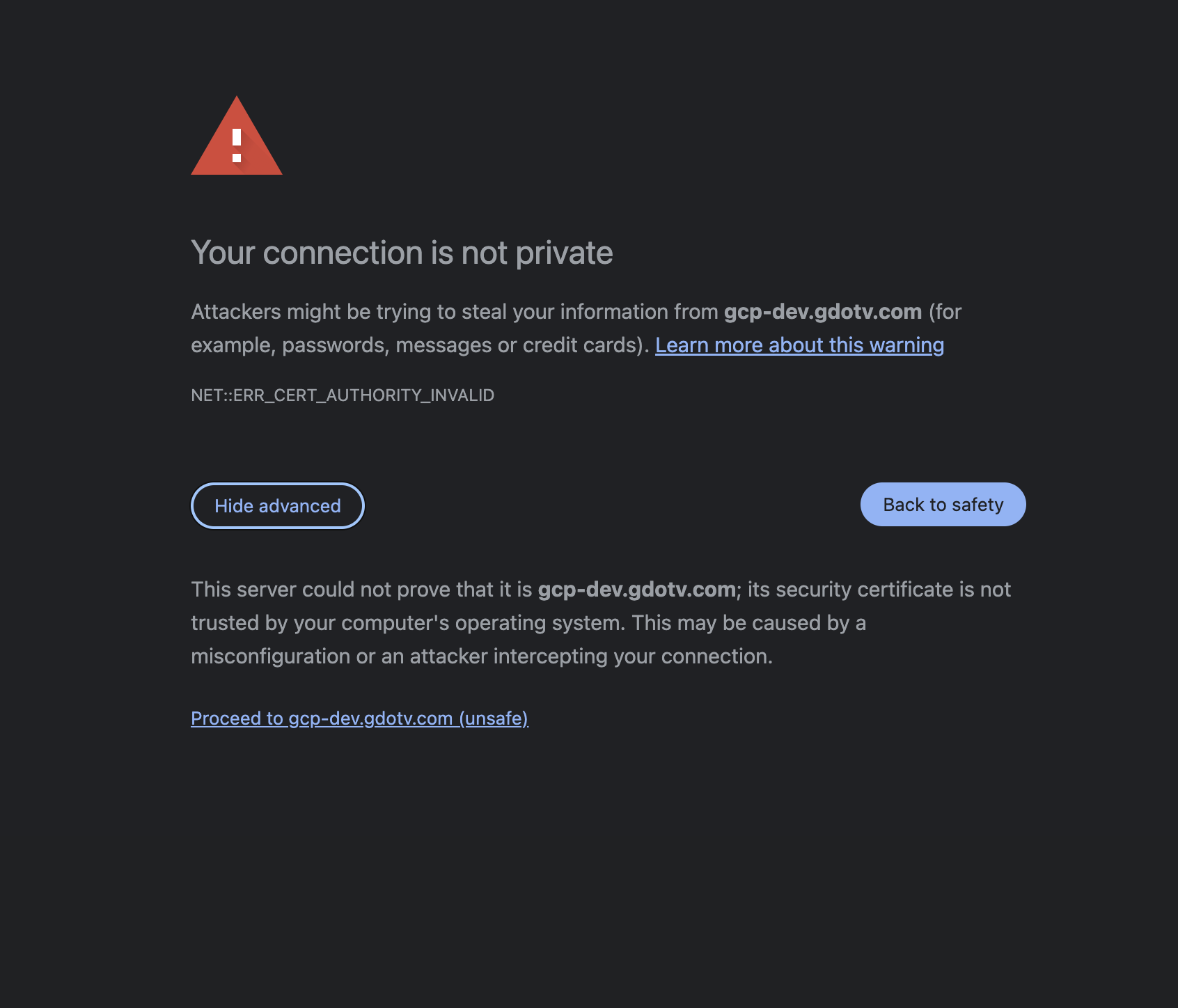

Navigate to https://<EXTERNAL_IP> in your browser. Since gdotv uses a self-signed TLS certificate by default, you will see a browser warning. Click Advanced, then Proceed to continue.

Authenticating to gdotv

gdotv uses Keycloak for authentication. On first deployment, a default user is created automatically:

• Username: gdotv
• Password: Auto-generated during deployment

To retrieve the default user password from the Kubernetes secret:

kubectl get secret gdotv-developer-gdotv-secrets \
  -n gdotv \
  -o jsonpath='{.data.gdotv-user-password}' | base64 -d

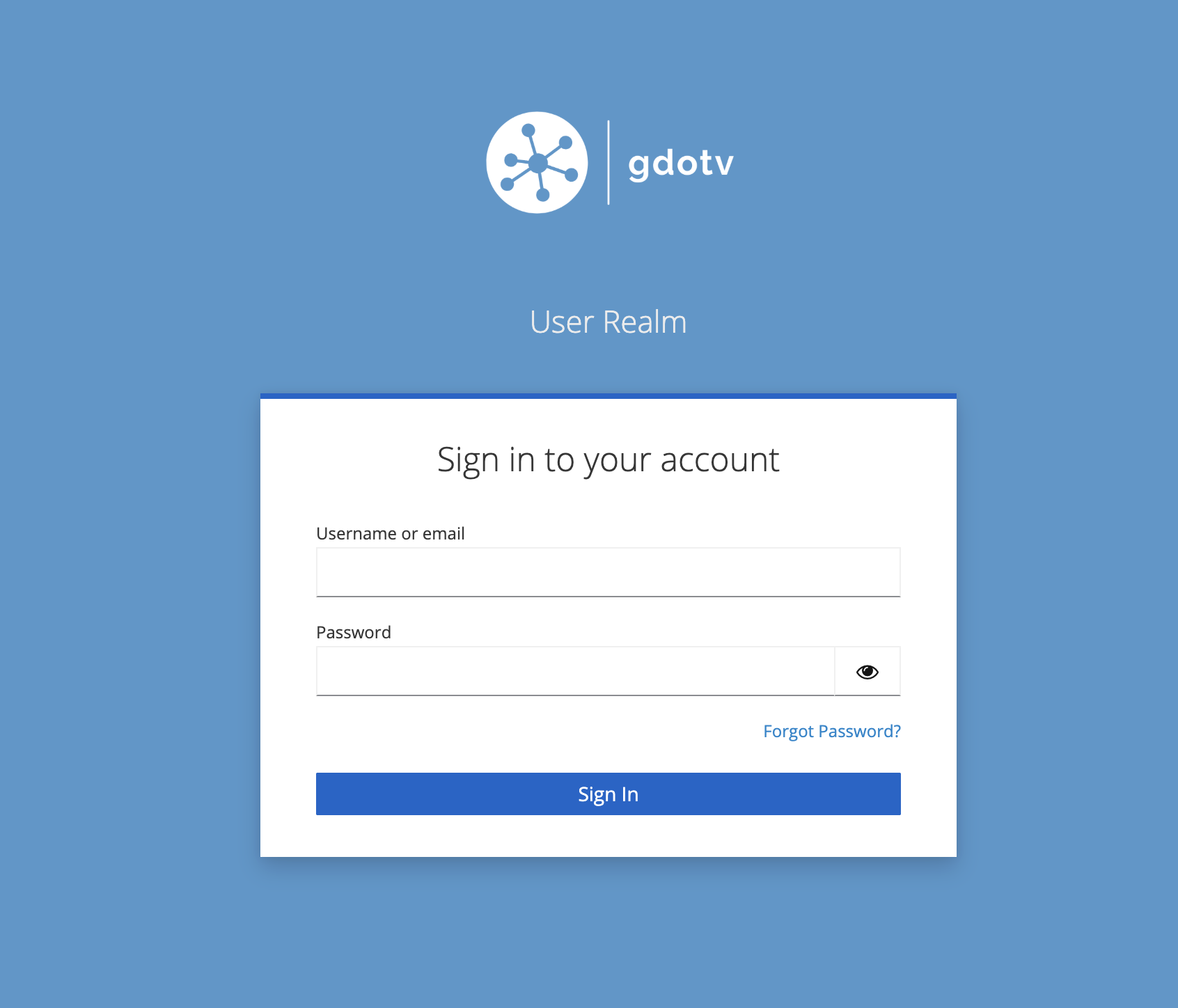

When navigating to gdotv while unauthenticated, you will be presented with the Keycloak login screen:

We recommend changing the default password after your first login. To do so, click on the username in the top-right menu bar, then select Change Password. You will be redirected to the Keycloak profile management page where you can update your password.

Authenticating to the gdotv Keycloak realm

The gdotv Keycloak realm is where all gdotv users are stored and managed. New authentication flows, such as Single Sign On, can be configured from the gdotv Keycloak realm admin console.

The gdotv Keycloak realm admin console can be accessed at:

https://<HOSTNAME>/kc/admin/gdotv/console/

The default realm admin credentials are:

• Username: gdotv
• Password: Same as the default gdotv user password (see above)

Authenticating to the master Keycloak realm

The master Keycloak realm provides access to the master administration interface of Keycloak. Under normal circumstances, it should rarely need to be accessed. However, we recommend logging in after initial deployment to change the master admin password.

The master Keycloak realm admin console can be accessed at:

https://<HOSTNAME>/kc/admin/master/console/

To retrieve the Keycloak admin credentials:

kubectl get secret gdotv-developer-keycloak-secrets \
  -n gdotv \
  -o jsonpath='{.data.admin-password}' | base64 -d

The default master admin username is admin.

Configuring a TLS certificate

By default, gdotv uses a self-signed certificate to serve its web interface over HTTPS. You may wish to configure your own trusted certificate against a domain name that you own.

WARNING

When changing the hostname, you must also update the TLS certificate in the same helm upgrade command. Running separate helm upgrade commands will cause values to be overwritten due to how --reuse-values works.

Renewing or replacing the certificate for the current hostname

To renew an expiring self-signed certificate or replace it with a CA-signed certificate for the hostname currently configured on your deployment:

HOSTNAME="<your-current-hostname>"

# Generate a self-signed certificate (or use your CA-issued .crt and .key files)
openssl req -x509 -nodes -days 3650 -newkey rsa:2048 \
  -keyout tls.key \
  -out tls.crt \
  -subj "/CN=gdotv/O=gdotv" \
  -addext "subjectAltName=DNS:${HOSTNAME}"

TLS_CRT=$(base64 -i tls.crt | tr -d '\n')
TLS_KEY=$(base64 -i tls.key | tr -d '\n')

helm upgrade gdotv-developer oci://gdotvdeveloper.azurecr.io/gdotv \
  --namespace gdotv \
  --reuse-values \
  --wait \
  --set nginx.tls.certificate="$TLS_CRT" \
  --set nginx.tls.privateKey="$TLS_KEY"

kubectl rollout restart deployment/gdotv-developer-nginx -n gdotv

Confirm the new certificate is active:

echo | openssl s_client -connect <HOSTNAME>:443 2>/dev/null | openssl x509 -noout -dates

Using a Kubernetes TLS secret for the current hostname

Alternatively, you can store your certificate as a Kubernetes TLS secret:

1. Create a TLS secret in your gdotv namespace:

kubectl create secret tls my-tls-cert \
  -n gdotv \
  --cert=path/to/tls.crt \
  --key=path/to/tls.key

2. Update the Helm release to use the secret:

helm upgrade gdotv-developer oci://gdotvdeveloper.azurecr.io/gdotv \
  --namespace gdotv \
  --reuse-values \
  --wait \
  --set nginx.tls.existingSecret=my-tls-cert

kubectl rollout restart deployment/gdotv-developer-nginx -n gdotv

Reverting to the default self-signed certificate

To revert to a self-signed certificate (e.g. after removing a custom domain), generate one for the current LoadBalancer IP and apply it alongside the hostname change:

# Get the current LoadBalancer IP
IP=$(kubectl get svc gdotv-developer-nginx -n gdotv -o jsonpath='{.status.loadBalancer.ingress[0].ip}')

# Generate a self-signed certificate for the IP
openssl req -x509 -nodes -days 365 -newkey rsa:2048 \
  -keyout tls.key -out tls.crt \
  -subj "/CN=$IP" -addext "subjectAltName=IP:$IP"

TLS_CRT=$(base64 -i tls.crt | tr -d '\n')
TLS_KEY=$(base64 -i tls.key | tr -d '\n')

# Revert hostname to the IP and apply the new cert in a single command
helm upgrade gdotv-developer oci://gdotvdeveloper.azurecr.io/gdotv \
  --namespace gdotv \
  --reuse-values \
  --wait \
  --set gdotv.env.hostname="$IP" \
  --set nginx.tls.existingSecret="" \
  --set nginx.tls.certificate="$TLS_CRT" \
  --set nginx.tls.privateKey="$TLS_KEY"

kubectl rollout restart deployment/gdotv-developer-keycloak -n gdotv
kubectl rollout restart deployment/gdotv-developer -n gdotv
kubectl rollout restart deployment/gdotv-developer-nginx -n gdotv

Configuring a custom hostname

If you deployed gdotv without a hostname (using the auto-detected LoadBalancer IP) and later want to configure a custom domain:

TIP

If you have an active session on the old hostname, your browser may have cached session data that causes redirects to the old address. We recommend logging out of gdotv before changing the hostname, or testing the new hostname in a private/incognito browser window.

1. Fetch the LoadBalancer IP of your gdotv deployment:

kubectl get svc gdotv-developer-nginx -n gdotv -o jsonpath='{.status.loadBalancer.ingress[0].ip}'

2. Create a DNS record (A record) on your domain manager of choice, pointing your domain (e.g. gdotv.example.com) to the LoadBalancer IP.

3. Update the hostname and TLS certificate together in a single helm upgrade command. You can either generate a self-signed certificate or use a Kubernetes TLS secret:

With a self-signed certificate:

HOSTNAME="gdotv.example.com"

openssl req -x509 -nodes -days 3650 -newkey rsa:2048 \
  -keyout tls.key -out tls.crt \
  -subj "/CN=gdotv/O=gdotv" \
  -addext "subjectAltName=DNS:${HOSTNAME}"

TLS_CRT=$(base64 -i tls.crt | tr -d '\n')
TLS_KEY=$(base64 -i tls.key | tr -d '\n')

helm upgrade gdotv-developer oci://gdotvdeveloper.azurecr.io/gdotv \
  --namespace gdotv \
  --reuse-values \
  --wait \
  --set gdotv.env.hostname="$HOSTNAME" \
  --set nginx.tls.certificate="$TLS_CRT" \
  --set nginx.tls.privateKey="$TLS_KEY"

With a Kubernetes TLS secret:

kubectl create secret tls my-tls-cert \
  -n gdotv \
  --cert=path/to/tls.crt \
  --key=path/to/tls.key

helm upgrade gdotv-developer oci://gdotvdeveloper.azurecr.io/gdotv \
  --namespace gdotv \
  --reuse-values \
  --wait \
  --set gdotv.env.hostname=gdotv.example.com \
  --set nginx.tls.existingSecret=my-tls-cert

4. Restart all services to pick up the changes (Keycloak first, then gdotv):

kubectl rollout restart deployment/gdotv-developer-keycloak -n gdotv
kubectl rollout restart deployment/gdotv-developer -n gdotv
kubectl rollout restart deployment/gdotv-developer-nginx -n gdotv

Upgrading to a new version

gdotv receives frequent updates with new features and improvements. Upgrading only updates the gdotv application container. Keycloak, nginx and the databases are unaffected.

helm upgrade gdotv-developer oci://gdotvdeveloper.azurecr.io/gdotv \
  --namespace gdotv \
  --reuse-values \
  --wait \
  --set gdotv.image.tag=<NEW_VERSION>

--reuse-values preserves all previously set values (passwords, hostname, certificates) so they do not need to be passed again.

Monitor the rollout:

kubectl rollout status deployment/gdotv-developer -n gdotv

If the new version fails to start, roll back to the previous release:

helm rollback gdotv-developer -n gdotv

Backup and Restore

Recommended: Azure Backup for AKS

For production deployments, we recommend using Azure Backup for AKS, a managed Azure service that provides scheduled, namespace-scoped backups of both Kubernetes resources (configs, secrets) and persistent volume data.

To set up Azure Backup for AKS:

1. Register the required providers and enable the backup extension on your cluster:

az provider register --namespace Microsoft.KubernetesConfiguration
az provider register --namespace Microsoft.DataProtection

az k8s-extension create \
  --name azure-aks-backup \
  --extension-type microsoft.dataprotection.kubernetes \
  --scope cluster \
  --cluster-type managedClusters \
  --cluster-name <CLUSTER_NAME> \
  --resource-group <RESOURCE_GROUP> \
  --release-train stable \
  --configuration-settings blobContainer=<BLOB_CONTAINER> \
    storageAccount=<STORAGE_ACCOUNT> \
    storageAccountResourceGroup=<STORAGE_RG> \
    storageAccountSubscriptionId=<SUBSCRIPTION_ID>

2. Create a Backup Vault and configure a backup policy targeting the gdotv namespace via the Azure Portal or CLI. Refer to the Azure Backup for AKS documentation for full steps.

Manual backup with pg_dump

For one-off backups or environments where Azure Backup for AKS is not available, you can back up the PostgreSQL databases directly. gdotv uses two PostgreSQL instances: one for the application (gdotv-developer-gdotv-postgres) and one for Keycloak (gdotv-developer-keycloak-postgres).

Back up the gdotv application database:

kubectl exec -n gdotv statefulset/gdotv-developer-gdotv-postgres -- \
  pg_dump -U postgres --clean --if-exists postgres \
  > gdotv-backup-$(date +%Y%m%d-%H%M%S).sql

Back up the Keycloak database:

kubectl exec -n gdotv statefulset/gdotv-developer-keycloak-postgres -- \
  pg_dump -U postgres --clean --if-exists postgres \
  > keycloak-backup-$(date +%Y%m%d-%H%M%S).sql

Restore the gdotv application database:

WARNING

Restoring overwrites current data. Stop the dependent application pod first to avoid write conflicts.

# Scale down the application before restoring
kubectl scale deployment/gdotv-developer -n gdotv --replicas=0

# Restore
cat gdotv-backup-<timestamp>.sql | kubectl exec -i -n gdotv \
  statefulset/gdotv-developer-gdotv-postgres -- \
  psql -U postgres postgres

# Scale back up
kubectl scale deployment/gdotv-developer -n gdotv --replicas=2

Restore the Keycloak database:

# Scale down Keycloak before restoring
kubectl scale deployment/gdotv-developer-keycloak -n gdotv --replicas=0

# Restore
cat keycloak-backup-<timestamp>.sql | kubectl exec -i -n gdotv \
  statefulset/gdotv-developer-keycloak-postgres -- \
  psql -U postgres postgres

# Scale back up
kubectl scale deployment/gdotv-developer-keycloak -n gdotv --replicas=1

Stop / Start Services

Stop all services (scale to zero)

This preserves PVCs and Secrets — data is not lost.

kubectl scale deployment/gdotv-developer -n gdotv --replicas=0
kubectl scale deployment/gdotv-developer-keycloak -n gdotv --replicas=0
kubectl scale deployment/gdotv-developer-nginx -n gdotv --replicas=0
kubectl scale statefulset/gdotv-developer-gdotv-postgres -n gdotv --replicas=0
kubectl scale statefulset/gdotv-developer-keycloak-postgres -n gdotv --replicas=0

Start all services

Start order matters: databases first, then Keycloak, then gdotv, then nginx.

kubectl scale statefulset/gdotv-developer-gdotv-postgres -n gdotv --replicas=1
kubectl scale statefulset/gdotv-developer-keycloak-postgres -n gdotv --replicas=1
kubectl scale deployment/gdotv-developer-keycloak -n gdotv --replicas=1
kubectl scale deployment/gdotv-developer -n gdotv --replicas=2
kubectl scale deployment/gdotv-developer-nginx -n gdotv --replicas=2

Restart a single service

kubectl rollout restart deployment/gdotv-developer -n gdotv
kubectl rollout restart deployment/gdotv-developer-keycloak -n gdotv
kubectl rollout restart deployment/gdotv-developer-nginx -n gdotv

Watch rollout progress:

kubectl rollout status deployment/gdotv-developer -n gdotv

Check Logs

gdotv application

# Live logs
kubectl logs -f -n gdotv deployment/gdotv-developer

# Logs from the previous (crashed) container
kubectl logs -n gdotv deployment/gdotv-developer --previous

Keycloak

kubectl logs -f -n gdotv deployment/gdotv-developer-keycloak

nginx

kubectl logs -f -n gdotv deployment/gdotv-developer-nginx

Bootstrap job

kubectl get pods -n gdotv -l app.kubernetes.io/component=bootstrap
kubectl logs -n gdotv -l app.kubernetes.io/component=bootstrap

All pods

kubectl get pods -n gdotv -l app.kubernetes.io/instance=gdotv-developer

Pod events (useful for crash diagnosis)

kubectl describe pod -n gdotv -l app.kubernetes.io/component=gdotv-app

Scaling

Scale the gdotv application

The gdotv application is stateless (session state is stored in PostgreSQL). It can safely run multiple replicas.

# Via kubectl
kubectl scale deployment/gdotv-developer -n gdotv --replicas=3

# Or persistently via helm upgrade
helm upgrade gdotv-developer oci://gdotvdeveloper.azurecr.io/gdotv \
  --namespace gdotv \
  --reuse-values \
  --wait \
  --set gdotv.replicaCount=3

Scale nginx

nginx is stateless and can be scaled freely:

kubectl scale deployment/gdotv-developer-nginx -n gdotv --replicas=3

Keycloak and databases

Keycloak and both PostgreSQL instances run as single replicas. Scaling them requires additional configuration (Keycloak clustering, PostgreSQL replication) that is outside the scope of this deployment. For production HA requirements, consider using Azure Database for PostgreSQL and a Keycloak Operator.

Cluster-level scaling

If pods cannot be scheduled due to insufficient node resources, scale the AKS node pool:

az aks scale \
  --resource-group <RESOURCE_GROUP> \
  --name <CLUSTER_NAME> \
  --node-count 5 \
  --nodepool-name <NODE_POOL_NAME>

Or update the autoscaler range:

az aks update \
  --resource-group <RESOURCE_GROUP> \
  --name <CLUSTER_NAME> \
  --update-cluster-autoscaler \
  --min-count 1 \
  --max-count 10

Azure: Managed Identity for Azure Connectors

To connect gdotv to Azure services without storing credentials in the cluster, use Azure Workload Identity. This links the Kubernetes Service Account used by the gdotv pod to an Azure Managed Identity, providing short-lived credentials automatically.

Prerequisites

Verify that the AKS cluster has the OIDC issuer and Workload Identity add-on enabled:

az aks show \
  --resource-group <RESOURCE_GROUP> \
  --name <CLUSTER_NAME> \
  --query "{oidcIssuer: oidcIssuerProfile.issuerUrl, workloadIdentity: securityProfile.workloadIdentity}"

If not enabled, update the cluster:

az aks update \
  --resource-group <RESOURCE_GROUP> \
  --name <CLUSTER_NAME> \
  --enable-oidc-issuer \
  --enable-workload-identity

Step 1 - Create a Managed Identity

az identity create \
  --resource-group <RESOURCE_GROUP> \
  --name gdotv-backend

Note the clientId and principalId from the output.

Step 2 - Grant permissions

Add only the roles required for the Azure services gdotv needs to connect to. For example, to connect to Azure Cosmos DB for Apache Gremlin:

az role assignment create \
  --assignee <MANAGED_IDENTITY_PRINCIPAL_ID> \
  --role "Cosmos DB Account Reader Role" \
  --scope /subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.DocumentDB/databaseAccounts/<COSMOS_ACCOUNT>

Step 3 - Create a Federated Identity Credential

Bind the Kubernetes Service Account in the gdotv namespace to the Managed Identity:

AKS_OIDC_ISSUER=$(az aks show \
  --resource-group <RESOURCE_GROUP> \
  --name <CLUSTER_NAME> \
  --query oidcIssuerProfile.issuerUrl -o tsv)

az identity federated-credential create \
  --name gdotv-federated \
  --identity-name gdotv-backend \
  --resource-group <RESOURCE_GROUP> \
  --issuer "$AKS_OIDC_ISSUER" \
  --subject "system:serviceaccount:gdotv:gdotv-developer" \
  --audience "api://AzureADTokenExchange"

Step 4 - Annotate the Kubernetes Service Account

kubectl annotate serviceaccount gdotv-developer -n gdotv \
  azure.workload.identity/client-id=<MANAGED_IDENTITY_CLIENT_ID> \
  --overwrite

Restart the gdotv pod to pick up the annotation:

kubectl rollout restart deployment/gdotv-developer -n gdotv

Uninstalling

To completely remove gdotv from your cluster:

helm uninstall gdotv-developer -n gdotv
kubectl delete namespace gdotv

Note that persistent volumes (PostgreSQL data) are not automatically deleted. To remove them:

kubectl delete pvc --all -n gdotv

To also delete the AKS cluster (if it was created for gdotv):

az aks delete \
  --resource-group <RESOURCE_GROUP> \
  --name <CLUSTER_NAME> \
  --yes --no-wait

Troubleshooting

The application is not accessible over HTTPS

• Check that the LoadBalancer has an external IP assigned: kubectl get svc -n gdotv
• Verify that AKS network security rules allow inbound traffic on port 443
• Check that all pods are running: kubectl get pods -n gdotv

gdotv pods are in CrashLoopBackOff

This typically indicates a hostname or Keycloak connectivity issue. Check the logs:

kubectl logs -n gdotv deployment/gdotv-developer

Common causes:

• Hostname mismatch between the configured hostname and the actual service endpoint
• Keycloak not fully ready when gdotv starts (init containers should handle this, but check events)

Pods stuck in Pending state

The cluster may not have sufficient node resources. Check events:

kubectl get events -n gdotv --sort-by='.lastTimestamp' | tail -20

If nodes are the issue, scale the node pool or update the autoscaler range (see Cluster-level scaling above).

Bootstrap job failed

The bootstrap job creates the initial Keycloak user. If it failed, check its logs:

kubectl logs -n gdotv -l app.kubernetes.io/component=bootstrap

You can re-trigger it by running a Helm upgrade:

helm upgrade gdotv-developer oci://gdotvdeveloper.azurecr.io/gdotv \
  --namespace gdotv \
  --reuse-values

Additional support

For any support queries, email us at support@gdotv.com. Support is free and we answer all queries within one business day.
