Turning Relational Data into Graph Visualizations with PuppyGraph & gdotv

Why Does PuppyGraph Exist & Why Is It More Performant Than a Traditional Graph Database?

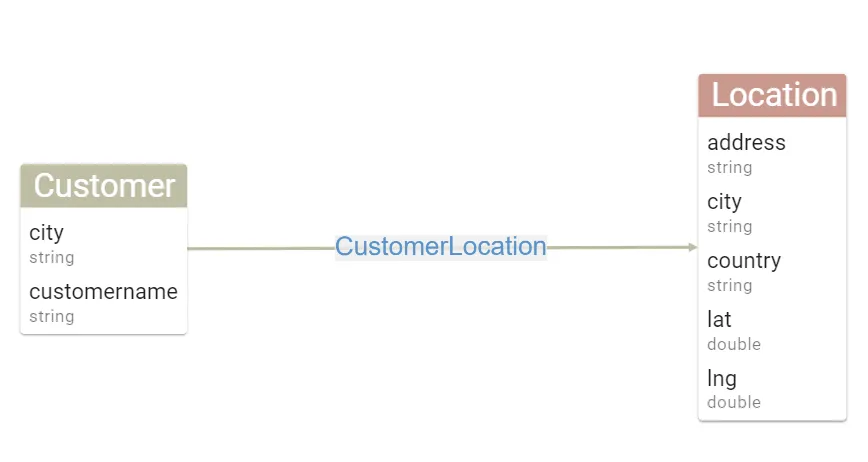

Under the hood

• catalogs: This is going to be your list of data sources. A data source consists of a name, credentials, database driver class, and JDBC URI.
• vertices: This is the translation layer between your database tables and your vertices. Each vertex is mapped from a catalog, a schema and a table. Simply put, a table should map to a vertex, and its columns to vertex properties, with a name and a type. In other words, your columns ARE your vertex properties, and you can pick which ones to include as part of your vertex.
• edges: This is the translation layer that leverages the relationships of your relational data and maps them into edges. Think simple: it’s (mostly) going to be foreign keys. You can even map attributes to your edges from columns of your related tables.

{
  "catalogs": [
    {
      "name": "postgres_data",
      "type": "postgresql",
      "jdbc": {
        "username": "postgres",
        "password": "postgres123",
        "jdbcUri": "jdbc:postgresql://postgres:5432/postgres",
        "driverClass": "org.postgresql.Driver"
      }
    }
  ],
  "vertices": [
    {
      "label": "Location",
      "mappedTableSource": {
        "catalog": "postgres_data",
        "schema": "supply",
        "table": "locations",
        "metaFields": {
          "id": "id"
        }
      },
      "attributes": [
        {
          "name": "address",
          "type": "String"
        },
        {
          "name": "city",
          "type": "String"
        },
        {
          "name": "country",
          "type": "String"
        },
        {
          "name": "lat",
          "type": "Double"
        },
        {
          "name": "lng",
          "type": "Double"
        }
      ]
    },
    {
      "label": "Customer",
      "mappedTableSource": {
        "catalog": "postgres_data",
        "schema": "supply",
        "table": "customers",
        "metaFields": {
          "id": "id"
        }
      },
      "attributes": [
        {
          "name": "customername",
          "type": "String"
        },
        {
          "name": "city",
          "type": "String"
        }
      ]
    }
  ],
  "edges": [
    {
      "label": "CustomerLocation",
      "mappedTableSource": {
        "catalog": "postgres_data",
        "schema": "supply",
        "table": "customers",
        "metaFields": {
          "id": "id",
          "from": "id",
          "to": "location_id"
        }
      },
      "from": "Customer",
      "to": "Location"
    }
  ]
}

Setting Up Your First PuppyGraph Container

version: "3"
services:
  puppygraph:
    image: puppygraph/puppygraph:stable
    pull_policy: always
    container_name: puppygraph
    environment:
      - PUPPYGRAPH_USERNAME=puppygraph
      - PUPPYGRAPH_PASSWORD=puppygraph123
    networks:
      postgres_net:
    ports:
      - "8081:8081"
      - "8182:8182"
      - "7687:7687"
  postgres:
    image: postgres:14.1-alpine
    container_name: postgres
    environment:
      - POSTGRES_USER=postgres
      - POSTGRES_PASSWORD=postgres123
    networks:
      postgres_net:
    ports:
      - "5432:5432"
    volumes:
      - ./postgres-data:/var/lib/postgresql/data
      - ./csv_data:/tmp/csv_data:ro
      - ./postgres-schema.sql:/tmp/postgres-schema.sql
networks:
  postgres_net:
    name: puppy-postgres

create schema supply;
create table supply.customers (id bigint, customername text, city text, state text, location_id bigint);
COPY supply.customers FROM '/tmp/csv_data/customers.csv' delimiter ',' CSV HEADER;

create table supply.distance (id bigint, from_loc_id bigint, to_loc_id bigint, distance double precision);
COPY supply.distances FROM '/tmp/csv_data/distance.csv' delimiter ',' CSV HEADER;

create table supply.factory (id bigint, factoryname text, locationid bigint);
COPY supply.factory FROM '/tmp/csv_data/factory.csv' delimiter ',' CSV HEADER;

create table supply.inventory (id bigint, productid bigint, locationid bigint, quantity bigint, lastupdated timestamp);
COPY supply.inventory FROM '/tmp/csv_data/inventory.csv' delimiter ',' CSV HEADER;

create table supply.locations (id bigint, address text, city text, country text, lat double precision, lng double precision);
COPY supply.locations FROM '/tmp/csv_data/locations.csv' delimiter ',' CSV HEADER;

create table supply.materialfactory (id bigint, material_id bigint, factory_id bigint);
COPY supply.materialfactory FROM '/tmp/csv_data/materialfactory.csv' delimiter ',' CSV HEADER;

create table supply.materialinventory (id bigint, materialid bigint, locationid bigint, quantity bigint, lastupdated timestamp);
COPY supply.materialinventory FROM '/tmp/csv_data/materialinventory.csv' delimiter ',' CSV HEADER;

create table supply.materialorders (id bigint, materialid bigint, factoryid bigint, quantity bigint, orderdate timestamp,

expectedarrivaldate timestamp, status text);
COPY supply.materialorders FROM '/tmp/csv_data/materialorders.csv' delimiter ',' CSV HEADER;

create table supply.materials (id bigint, materialname text);
COPY supply.materials FROM '/tmp/csv_data/materials.csv' delimiter ',' CSV HEADER;

create table supply.productcomposition (id bigint, productid bigint, materialid bigint, quantity bigint);
COPY supply.productcomposition FROM '/tmp/csv_data/productcomposition.csv' delimiter ',' CSV HEADER;

create table supply.products (id bigint, productname text, price double precision);
COPY supply.products FROM '/tmp/csv_data/products.csv' delimiter ',' CSV HEADER;

create table supply.productsales (id bigint, productid bigint, customerid bigint, quantity bigint,

saledate timestamp, totalprice double precision);
COPY supply.productsales FROM '/tmp/csv_data/productsales.csv' delimiter ',' CSV HEADER;

create table supply.productshipment (id bigint, productid bigint, fromlocationid bigint, tolocationid bigint,

quantity bigint, shipmentdate timestamp, expectedarrivaldate timestamp, status text);
COPY supply.productshipment FROM '/tmp/csv_data/productshipment.csv' delimiter ',' CSV HEADER;


Create a new csv_data folder, download the CSV data archive containing our sample data, and unzip it under csv_data.

/csv_data
            customers.csv
            distance.csv
            factory.csv
            inventory.csv
            locations.csv
            materialfactory.csv
            materialorders.csv
            materials.csv
            productcomposition.csv
            products.csv
            productsales.csv
            productshipment.csv
docker-compose-puppygraph.yaml
postgres-schema.sql

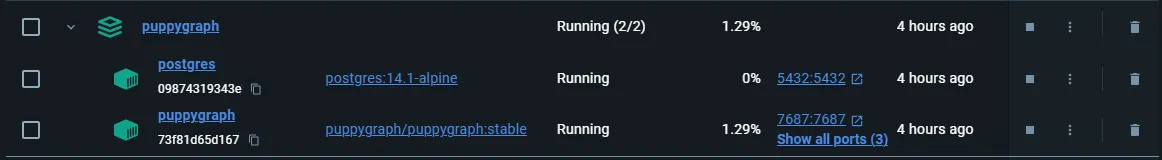

docker compose -f puppygraph/docker-compose-puppygraph.yaml up

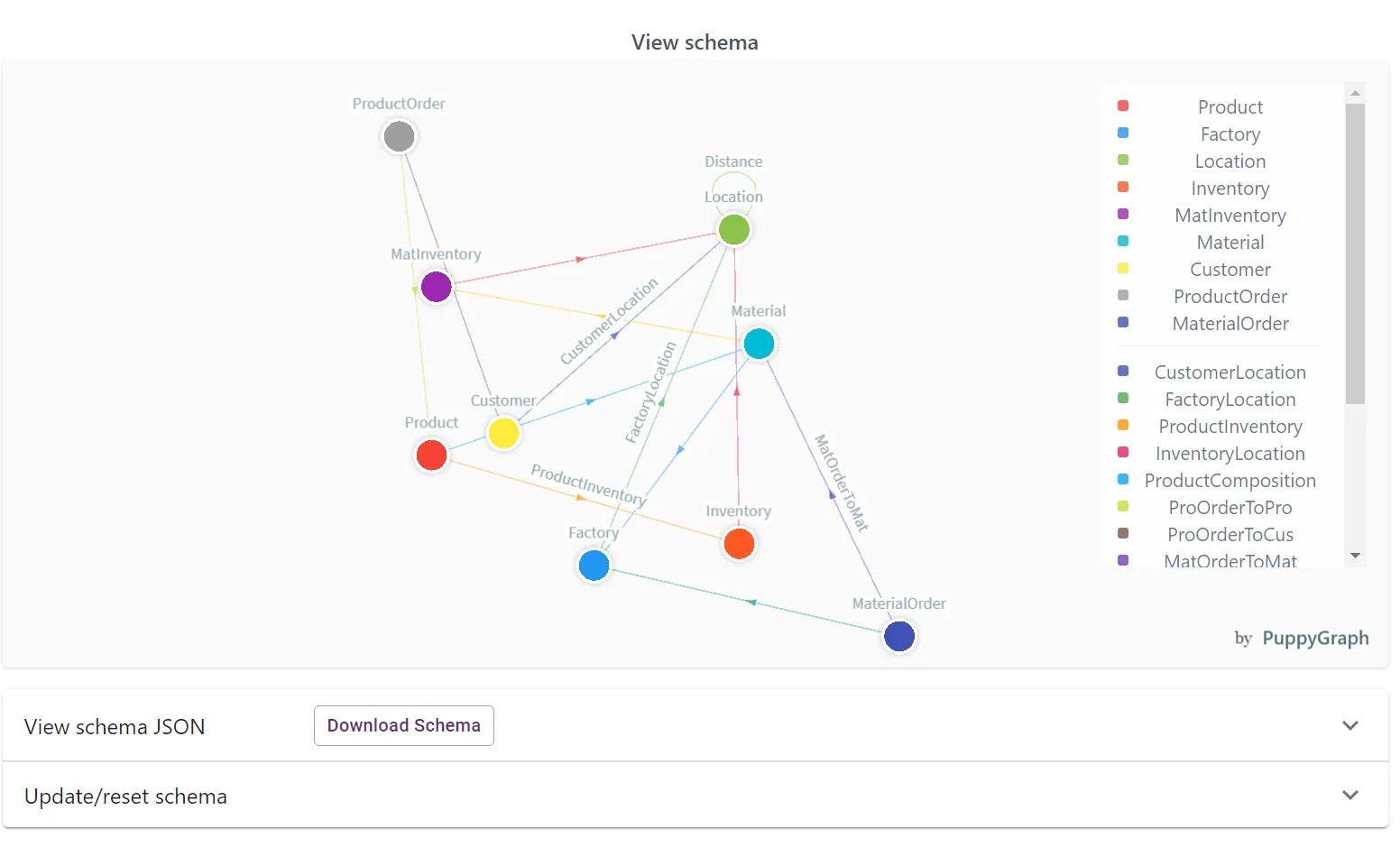

Loading Relational Data & Turning It into a Graph

docker exec -it postgres psql -h postgres -U postgres
\i /tmp/postgres-schema.sql

Connecting gdotv to PuppyGraph

So first off, make sure to download and install gdotv, which will only take a minute. Open gdotv and click on “New Database Connection”. Select PuppyGraph as the Graph Technology Type, and enter localhost as the Hostname/IP Address, then click on Test Connection. Next, you’ll be prompted for your PuppyGraph credentials, which are the same as earlier (puppygraph/puppygraph123). Click on Test Connection again, and you’re good to go! Click on Submit to Create the Database Connection.

You’ll be prompted to sign up for a 2-week trial – enter your details, get your validation code via email, and then you’re ready to start. If you’d rather not share your details, click on the close button for the application and you’ll be offered to get an anonymous trial instead, which will apply immediately. With that done, you’re all set!

Getting Insights from Your Shiny New PuppyGraph Instance with gdotv

With all that hard work done, we’re ready to write some cool Gremlin queries to apply the benefits of your PuppyGraph analytics engine to relational data.

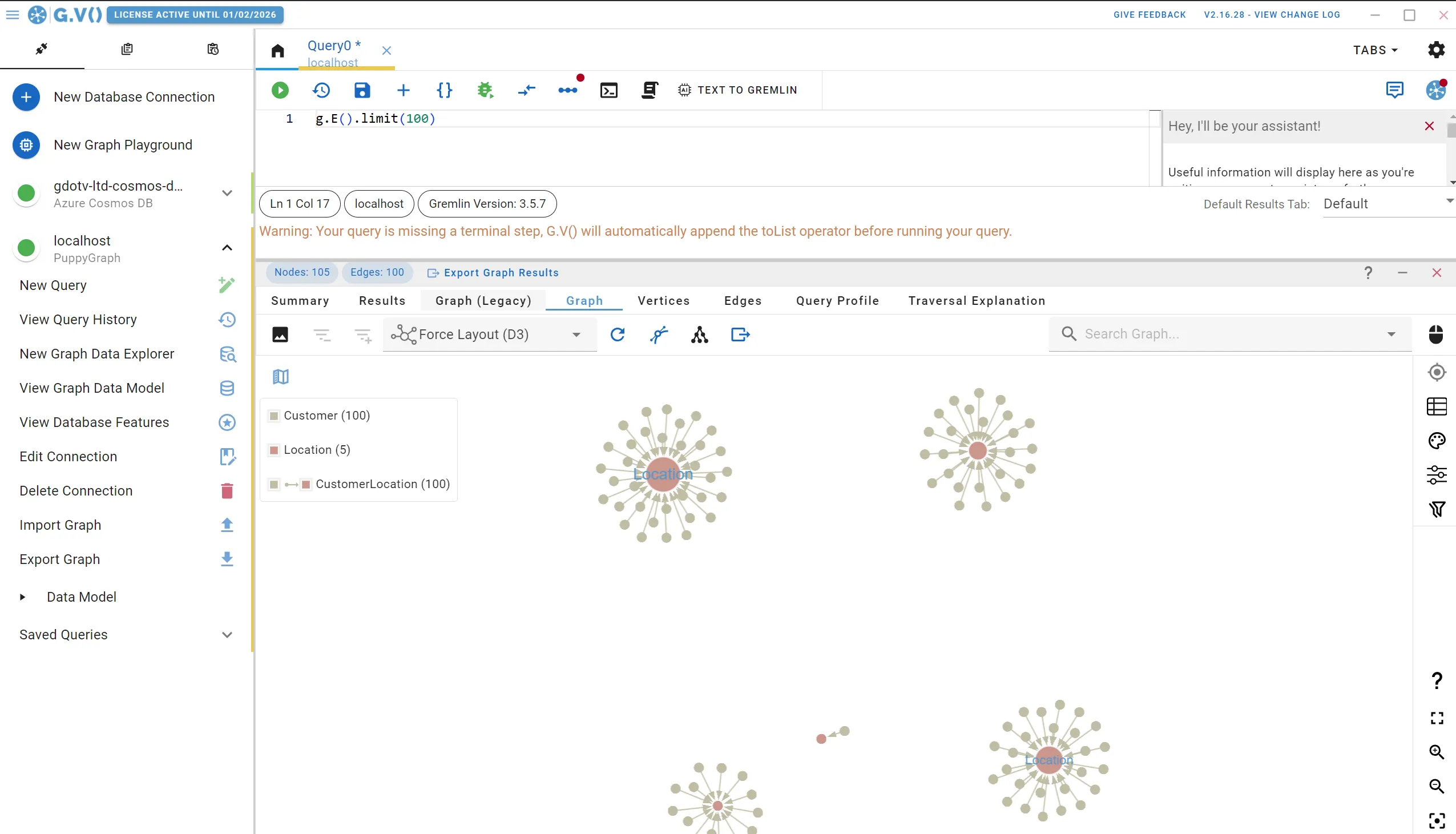

You’ll first notice a query tab opened with a simple query running g.E().limit(100) and the corresponding graph visualization, as shown below:

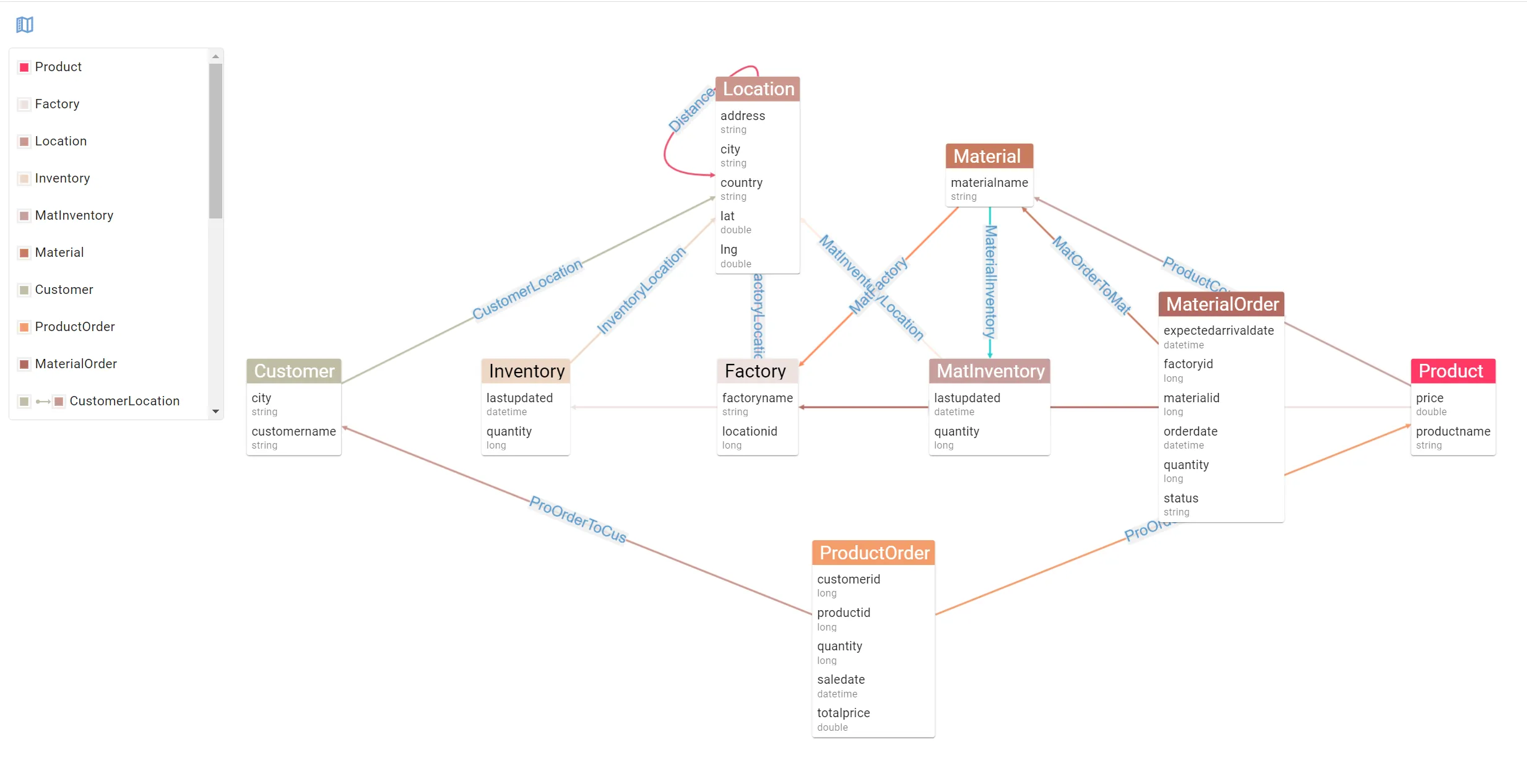

There’s a lot going on in this screen, and we’ll come back to that. For now, let’s check out the Entity-Relationship diagram gdotv has created for your PuppyGraph data schema. On the left-hand side, click on View Graph Data Model, and you’ll be presented with the following:

The Entity-Relationship diagram gdotv provides you is an easy way to inspect the structure of your data. This becomes especially useful when mixing multiple data sources in your PuppyGraph data schema as the resulting schema would be different from the individual data models of your data sources.

The added benefit of gdotv knowing your data schema is that gdotv can also use it to power a whole bunch of features, such as smart autocomplete suggestions when writing queries, or graph stylesheets to customise the look and feel or your displays.

What’s important here is to realise what huge benefits a graph structure brings to your relational data. Let’s take a real-life example applied to this dataset and compare how a graph query would perform against a normal SQL query. The dataset we’re using here is a supply chain use case. Unfortunately sometimes in a supply chain, a material can be faulty and lead to downstream impact to our customers.

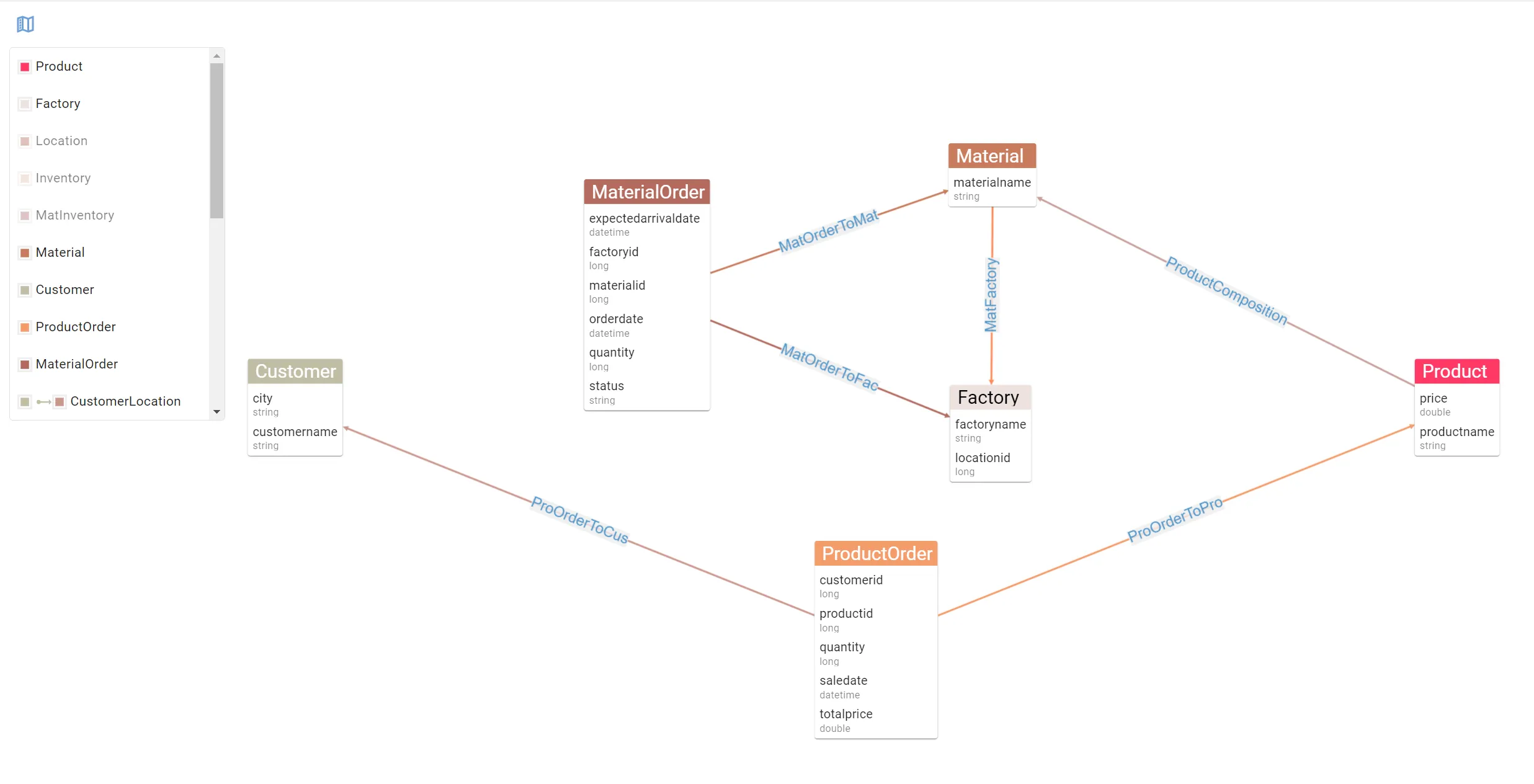

Let’s say, as an example, that a Factory has been producing faulty materials and that we need to inform impacted customers of a product recall. To visualise how we might solve this querying problem, let’s filter down our data model to display the relevant entities and relationships we should leverage to get the right query running:

Using this view allows you to see the path from Factory to Customer. This concept of traversing a path in your data from a point A (a factory putting out faulting materials) to point B (our impacted customers) is fundamental in a graph database. Crucially, this is exactly the type of problems graph analytics engine are built to solve. In an SQL world, this would be a very convoluted query: a Factory joins to a Material which joins to a Product which joins to a ProductOrder which joins to a Customer. Yeesh.

Using the Gremlin query language, however, this becomes a much simpler query. Remember that unlike relational databases, where we select and aggregate the data to get to an answer, here we are merely traversing the data. Think of it as tracing the steps of your Materials from Factory all the way to Customer. To write your query, we’ll pick “Factory 46” as our culprit, and design our query step by step back to our customers.

In Gremlin, we pick the vertex with label “Factory” and factoryname “Factory 46”, as follows:

g.V().has("Factory", "name", "Factory 46")

This is our starting point in the query, our “Point A”. Next, we simply follow the relationships displayed in our Entity-Relationship diagram leading to our unlucky Customers.

To get the materials produced by the factory, represented as the MatFactory relationship going out of Material into Factory, we simply add the following step to our query:

g.V().has("Factory", "name", "Factory 46".in("MatFactory")

You should start seeing where this is going. Following this logic, let’s get all the way to our Customers:

g.V().has("Factory", "name", "Factory 46").in("MatFactory").in("ProductComposition").in("ProOrderToPro").out("ProOrderToCus")

And there you have it! This query will return the Customer vertices that have bought products made up of materials manufactured in Factory 46. Best of all, it fits in just one line!

Let’s punch it into gdotv – this will be an opportunity to demonstrate how the gdotv query editor’s autocomplete helps you write graph queries quick and easy:

We can of course create more complex queries to answer more detailed scenarios. For instance, in our example above, we could narrow down to a single faulty material or only recall orders made at a specific date.

The Gremlin query language offers advanced filtering capabilities and a whole host of features to fit just about any querying scenario. gdotv is there to help you with the process of designing queries by offering smart suggestions, embedded Gremlin documentation, query debugging tools and a whole host of data visualization options.
